BOOM LIFTS

Boom lifts are useful for applications that require high reach capability. Its turntable can be rotated 360° in either direction for easier positioning. The boom can be raised or lowered from vertical to below horizontal and extended while the work platform remains stable.

The operator in the platform can maneuver and steer in any direction, even while the boom is extended.





Model 110SX

Model 110SXJ

Model 120SXJ







Model 110SX

1,000 lb. capacity
60 ft reach, 110 ft of lift


EQUIPMENT STATISTICS


ENGINE:

Drive Speed

3 mph (4.8 km/h)

POWER SOURCE:

Diesel

Deutz F4L912 70 hp

Fuel Tank Capacity

40 gal. (152 L)

Hydraulic Reservoir

50 gal. (190.L)

Auxiliary Power

12V-DC

DIMENSIONS:

Platform Size

36 x 96 in. (1.0 x 2.4m)

Width

10'10"(3.3 m)

Width (retracted)

8'2"(2.48 m)

Stowed Size

10 x 39' (3x12 m)

Wheelbase

10' (3.05) m

Ground Clearance

14.5 in. (37 cm)

Gross Vehicle Weight

41,900 lbs. (19,006 kg)

WEIGHTS:

Platform Capacity

1000 lbs. (450 kg)

REACH:

Max. height

110' (33.53 m)

Max. forward reach

60' (18.29 m)

Below ground reach

12' (3.6 m)

Swing

360° (continuous)

RANGE DIAGRAM


Model 110SX

Click to view a larger image

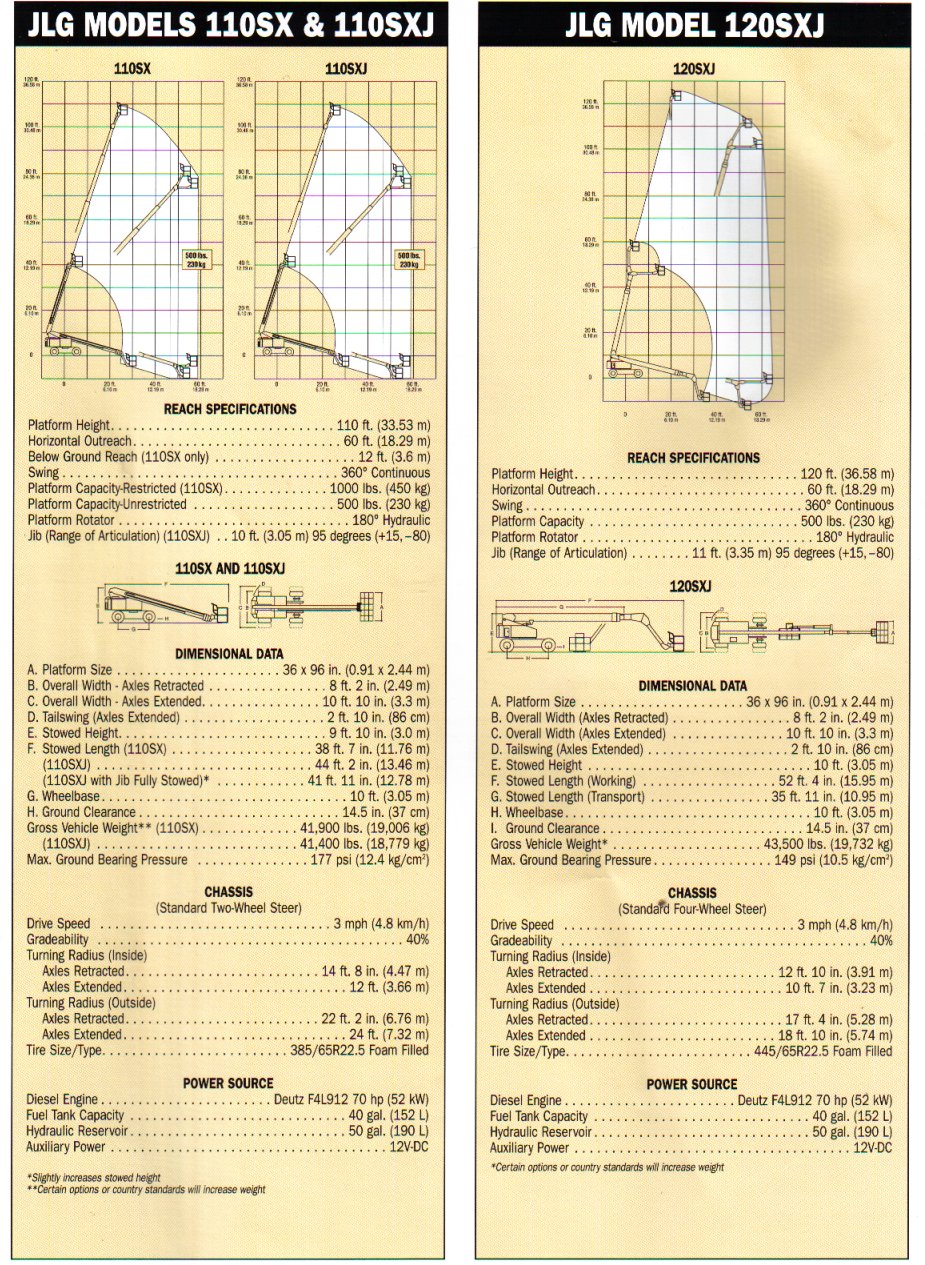

DOCUMENTATION


JLG Model Specifications

Click to view a larger image
