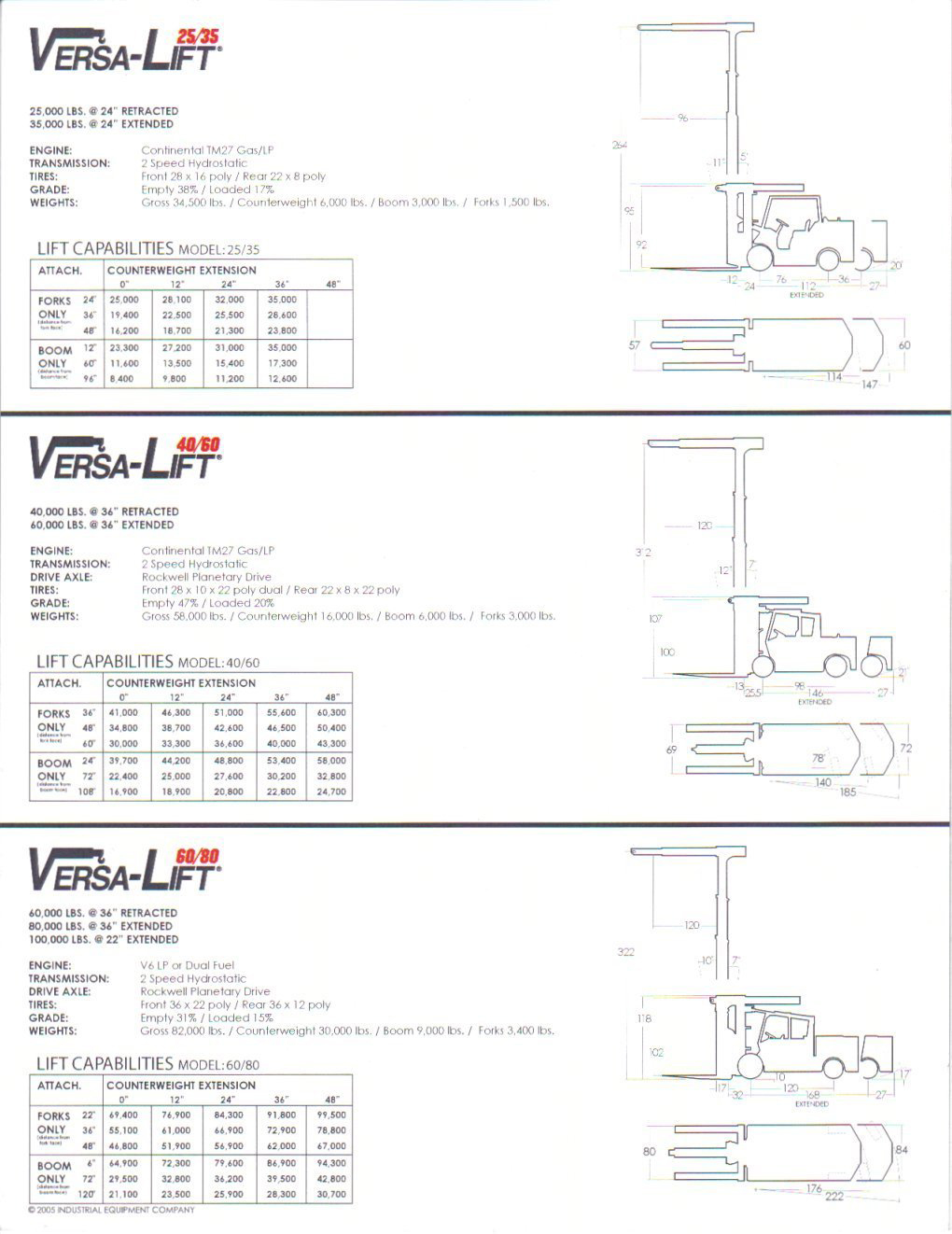

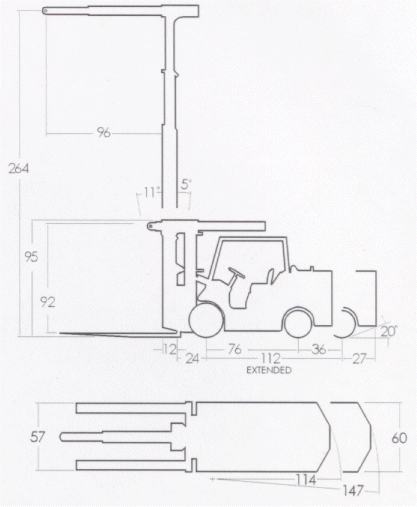

Model
25/35
25,000 lbs. @ 24" Retracted
35,000 lbs. @ 24" Extended |
 |
|
ENGINE:
|
Continental TM27 Gas/LP
|
|
TRANSMISSION:
|
2 Speed Hydrostatic
|
|
TIRES:
|
Front 28 x 16 poly / Rear 22 x 8 poly
|
|
GRADE:
|
|
|
WEIGHTS:
|
|
Gross
|
34,500 lbs.
|
|
Counterweight
|
6,000 lbs.
|
|
Boom
|
3,000 lbs.
|
|
Forks
|
1,500 lbs.
|
|
|
ATTACH.
|
COUNTERWEIGHT EXTENSION
|
| |
0" |
12" |
24" |
36" |
48" |
|
FORKS
ONLY
|
24"
|
25,000 |
28,100 |
32,000 |
35,000 |
|
|
36"
|
19,400 |
22,500 |
25,500 |
28,600 |
|
|
48"
|
16200 |
18,700 |
21,300 |
23,800 |
|
|
BOOM ONLY
|
12"
|
23,300 |
27,200 |
31,000 |
35,000 |
|
|
60"
|
11,600 |
13,500 |
15,400 |
17,300 |
|
|
96"
|
8,400 |
9,800 |
11,200 |
12,600 |
|
|

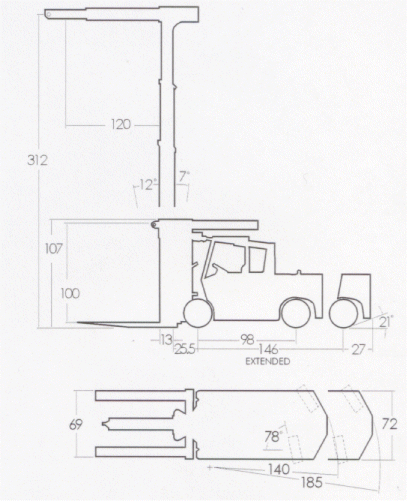

Model
40/60
40,000 lbs. @ 36" Retracted
60,000 lbs. @ 36" Extended
|
 |
|
ENGINE:
|
Continental TM27 Gas/LP
|
|
TRANSMISSION:
|
2 Speed Hydrostatic
|
|
DRIVE AXLE:
|
Rockwell Planetary Drive
|
|
TIRES:
|
Front 28 x 10 x 22 poly / Rear 22 x 8 x
22 poly
|
|
GRADE:
|
|
|
WEIGHTS:
|
|
Gross
|
58,000 lbs.
|
|
Counterweight
|
16,000 lbs.
|
|
Boom
|
6,000 lbs.
|
|
Forks
|
3,000 lbs.
|
|
|
ATTACH.
|
COUNTERWEIGHT EXTENSION
|
| |
0" |
12" |
24" |
36" |
48" |
|
FORKS
ONLY
|
36"
|
41,000 |
46,300 |
51,000 |
55,600 |
60,300 |
|
48"
|
34,800 |
38,700 |
42,600 |
46,500 |
50,400 |
|
60"
|
30,000 |
33,300 |
36,600 |
40,000 |
43,300 |
|
BOOM ONLY
|
24"
|
39,700 |
44,200 |
48,800 |
53,400 |
58,000 |
|
72"
|
22,400 |
25,000 |
27,600 |
30,200 |
32,800 |
|
108"
|
16,900 |
18,900 |
20,800 |
22,800 |
24,700 |
|

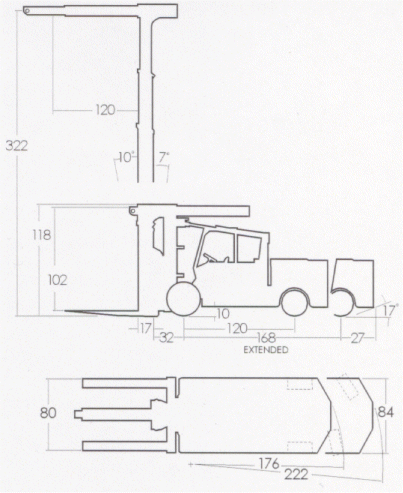

Model
60/80
60,000 lbs. @ 36" Retracted
100,000 lbs. @ 22" Extended
|
 |
|
ENGINE: |
V6 LP or Dual Fuel
|
|
TRANSMISSION: |
2 Speed Hydrostatic
|
|
DRIVE AXLE: |
Rockwell Planetary Drive
|
|
TIRES: |
Front 36 x 22 poly / Rear 36 x 12 poly
|
|
GRADE: |
|
|
WEIGHTS: |
|
Gross
|
82,000 lbs.
|
|
Counterweight
|
30,000 lbs.
|
|
Boom
|
9,000 lbs.
|
|
Forks
|
3,400 lbs.
|
|
|
ATTACH.
|
COUNTERWEIGHT EXTENSION
|
| |
0" |
12" |
24" |
36" |
48" |
|
FORKS
ONLY
|
22"
|
69,400 |
76,900 |
84,300 |
91,800 |
99,500 |
|
36"
|
55,100 |
61,000 |
66,900 |
72,900 |
78,800 |
|
48"
|
46,800 |
51,900 |
56,900 |
62,000 |
67,000 |
|
BOOM ONLY
|
6"
|
64,900 |
72,300 |
79,600 |
86,900 |
94,300 |
|
72"
|
29,500 |
32,800 |
36,200 |
39,500 |
42,800 |
|
120"
|
21,100 |
23,500 |
25,900 |
28,300 |
30,700 |
|
|
