TELEHANDLERS |
|
Telehandlers
are at home in building construction.
The adjustable forks lift
loads to multiple aerial levels allowing for faster and safer
construction sites. Telehandlers are also sure-footed machines,
finding stability on rougher terrain.
|
|
This
machine allows you to move your loads during the earliest and roughest stages of construction. |

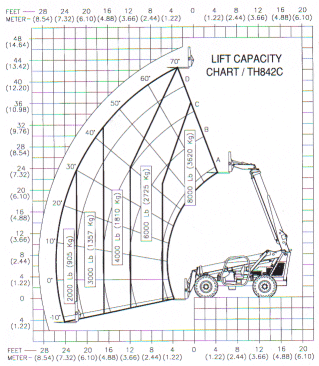

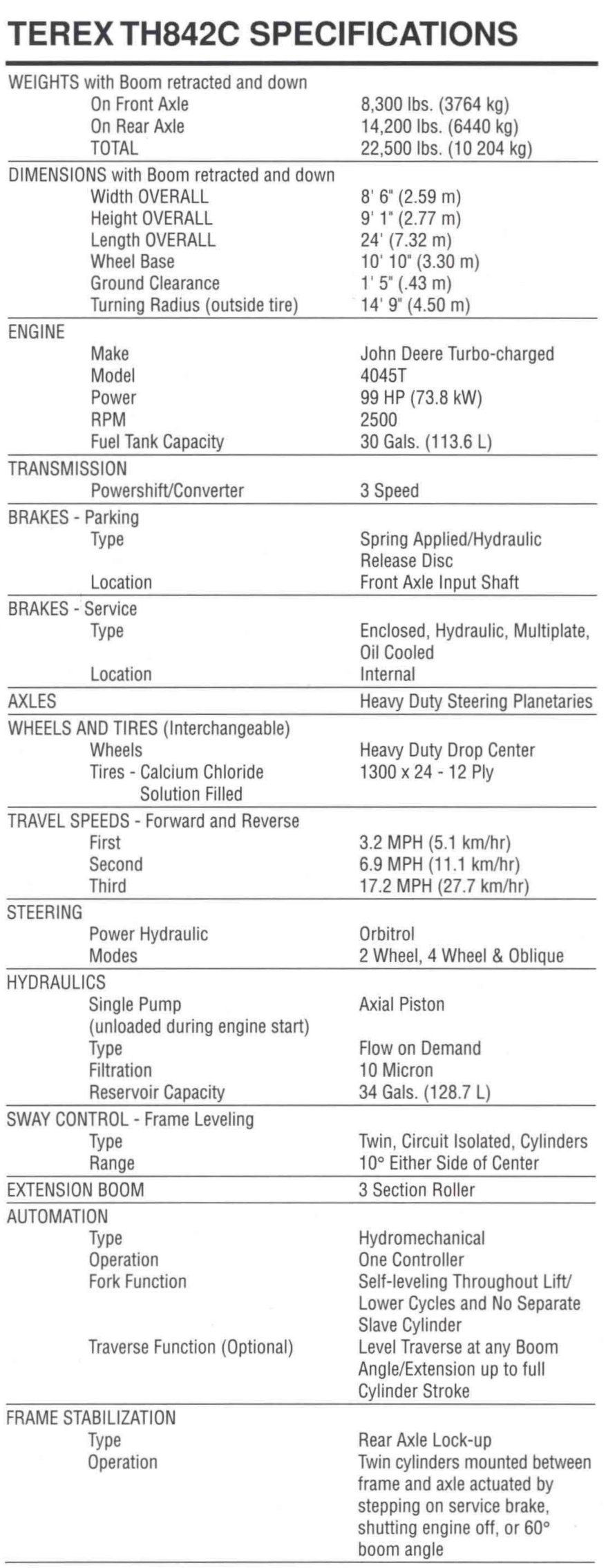

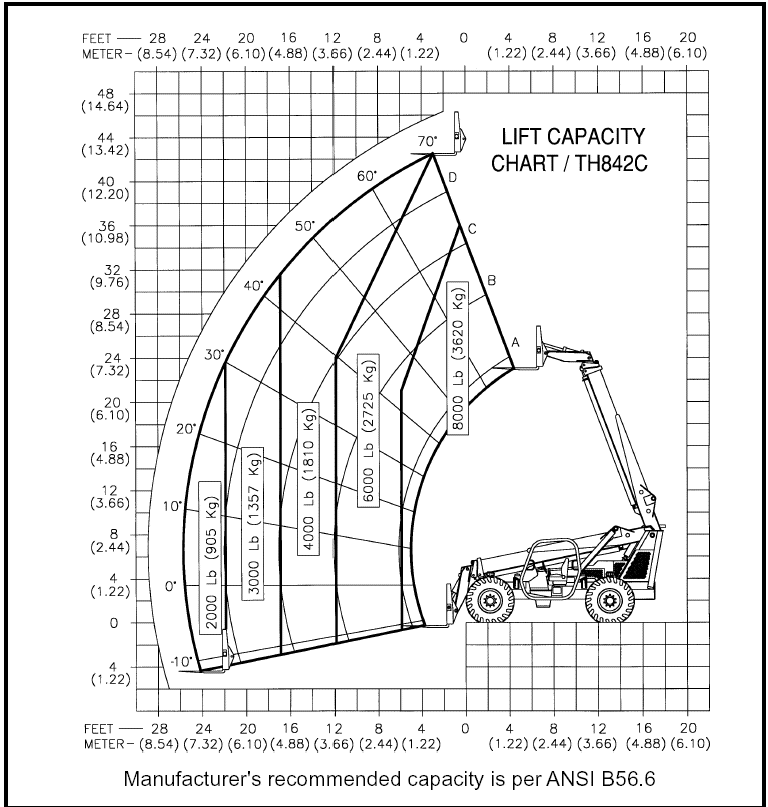

Model
TH842C
8,000 lb. capacity
25 ft reach, 42 ft of lift |
 |
|
ENGINE: |
John Deere, 4045T |
|
TRANSMISSION: |
4WD, front axle
differential lock, 3 speed |
|
TIRES: |
1300 x 24 12 ply,
calcium chloride solution fill |
|
FORKS: |
|
Length |
48" (1,200 mm) |
|
Section |
5" x 2" (130 x 50 mm) |
|
|
WEIGHTS: |
|
Gross |
22,500 lbs. |
|
On front axle |
8,300 lbs. |
|
On rear axle |
14,200 lbs. |
|
|
REACH: |
|
Max. lifting
height |
42 ft |
|
Max. forward
reach |
25 ft |
|
Reach at max.
height |
3 ft |
|
Payload at max.
height |
4,000 lbs. |
|
Payload at max.
reach |
2,000 lbs |
|

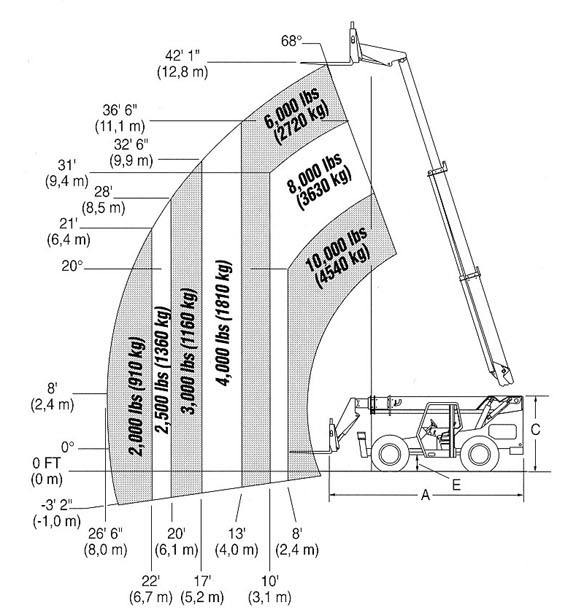

Model
10042
10,000 lb. capacity
26
ft reach, 42 ft of lift |
 |
|
ENGINE: |
Cummins 4BT3.9 Turbo After Cooled Diesel
116 HP (87 kW) @2,500 RPM (U/Min)
Torque Rating 300 lb. ft. (407 Nm) @ 1,600 rpm |
|
TRANSMISSION: |
Powershift, 3-speed forward and reverse |
|
TIRES: |
17.5 x 25, 12-ply |
|
FLUIDS: |
|
Hydraulic
oil capacity |
60 gal.
(132 liters) |
|
Fuel tank
capacity |
35 gal.
(91 liters) |
|
|
WEIGHTS: |
|
Lift
height |
42’1”
(12,8 m) |
|
Max lift
capacity |
10,000 lbs. (4540 kg) |
|
Frame tilt
to left or right |
10° |
|
|
REACH: |
|
Max. Reach |
26' |
|
Reach below
grade |
3’2”
(1.0 m) |
|
|
Return to Top
Industrial Equipment Company
COAST to
COAST
SHORT or LONG TERM
414.764.2100
rob.keelan@industrialequipmentcompany.com |
|

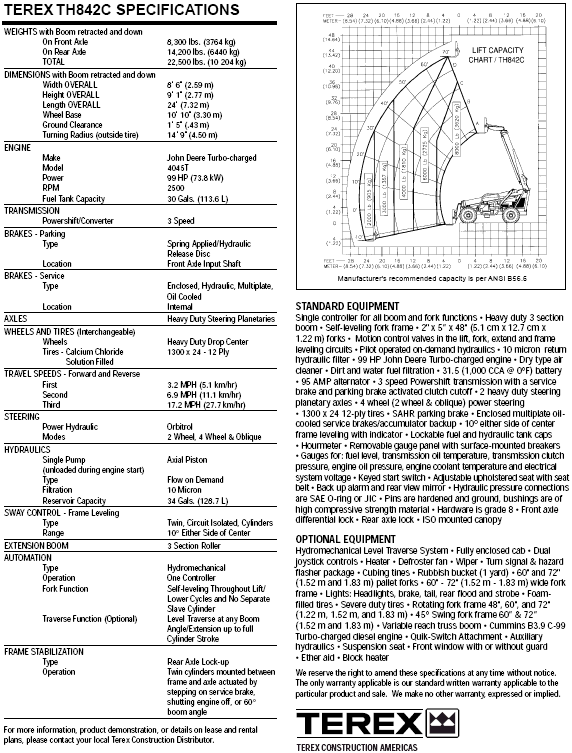

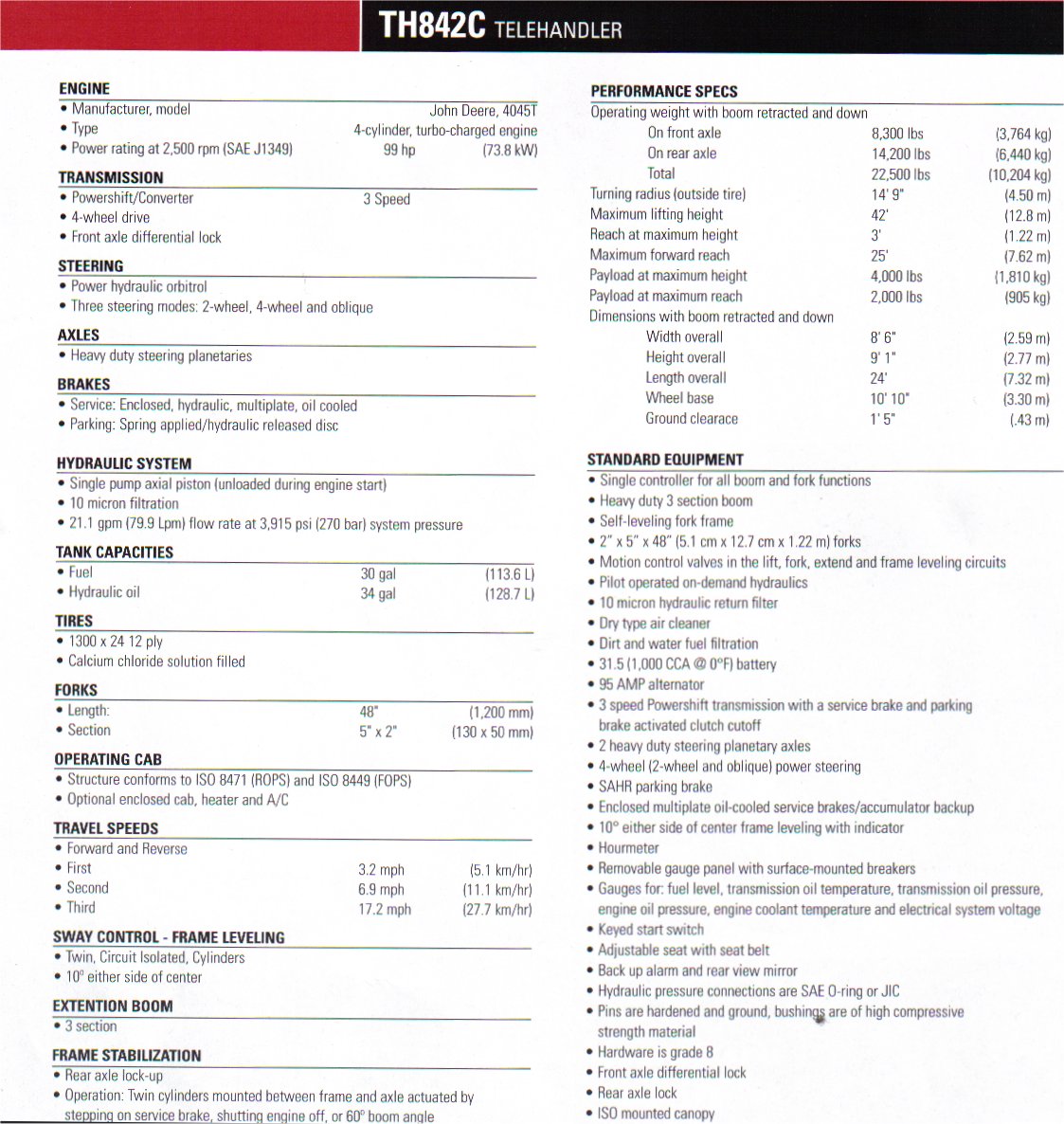

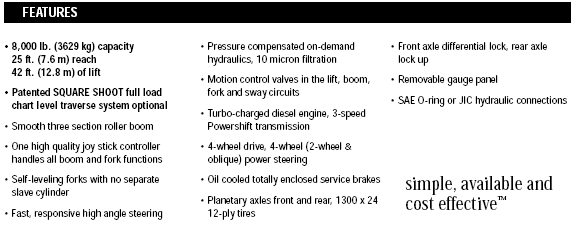

Terex TH842C Features & Specifications (Adobe PDF
format)
